High Voltage

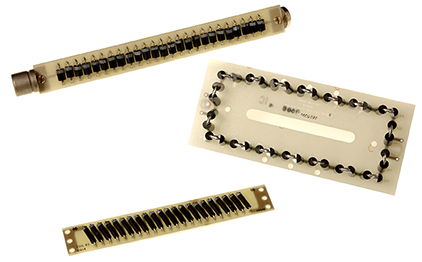

P.C. Board Assemblies

Edal's high voltage P.C. board assemblies are ideally suited for X-ray applications. They are available in voltages up to 220 kV and currents up to 500 mA (in oil).

Assemblies are constructed from either individual or multichip diodes, which have been simultaneous diffused and passivated. Diodes are tested, selected, and stabilized to meet Bulk Avalanche designs, thereby assuring reliability. Fast recovery assemblies are also available. This series can be easily customized to meet your electrical and physical requirements.
